Power Distribution High Voltage Electrical Switchgear For Mining Enterprises

Name: Power Distribution High Voltage Electrical Switchgear For Mining Enterprises
Brand: Tianan Electric
Price: 1 USD

Power Distribution High Voltage Electrical Switchgear For Mining Enterprises Manufactures

Brand Name : Tianan Electric

Model Number : KYN61-40.5

Certification : ISO9001:2000 IEC62271:200 CCC VDE

Place of Origin : CHINA

MOQ : 1 set

Price : Pending

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000sets per year

Delivery Time : 60 work days

Packaging Details : Wooden Case

Rated Current : 1250, 1600, 2000,2500A

Altitude : <1 000m

Rated voltage : 35KV

Application : Power plant ,substation , industrial , mining enterprises

Contact Now

Indoor 40 . 5 KV High Voltage Switchgear Cubicle For Power Distribution

Product description:

KYT1 (KYN61)-40.5 Power Distribution Cabinet is a three-phase AC 50Hz, indoor whole set distribution unit with rated voltage 40.5kV.,which accept and distribute electric energy in power plant ,substation and industrial and mining enterprises and can control, protect and supervise circuits.

Operating Conditions:

No.	Description	Requirement
1	Ambient air temperature	-15℃ ~ +40℃
2	Average temperature (within 24h)	≤ +35℃
3	Altitude	≤1000m
4	Monthly average relative humidity	≤90%
5	Daily average relative humidity(within24h)	≤95%
6	Monthly average water vapor pressure	≤ 1.8 kPa
7	Daily average water vapor pressure(24h)	≤ 2.2 kPa
8	The ambient air is not clearly contaminated with dust, smoke, corrosive and/or combustible gases, vapors or salt mist.

Note: Customized products are available.

Main technical specification:

ü It is applicable for rated voltage 40.5kV, three phase AC 50Hz indoor electric system.

ü It is used as power receiving and distributing in power plants, substations and industrial and mining enterprises to control, protect and monitor the circuit.

ü The product meets the requirements of GB3906 “3-35kV AC Metal Enclosed Switchgear” and GB/T11022 “Technical Requirements for Indoor AC High Voltage Switchgear”.

ü It can be used coordinately with vacuum circuit breaker ZN85-40.5 or and LN2-40.5 type SF6 circuit breaker.

Product Tags:

gas insulated switchgear

high voltage electrical switchgear

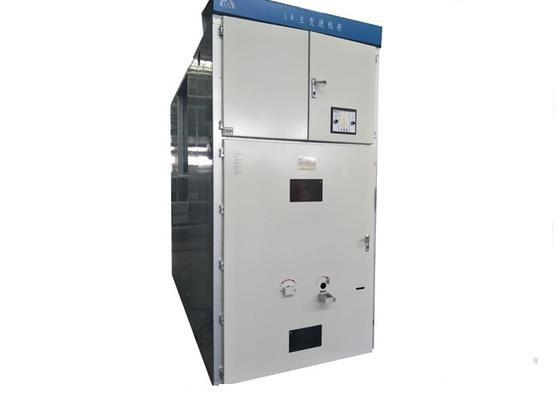

Power Distribution High Voltage Electrical Switchgear For Mining Enterprises Images
